4K Ultra HD Surveillance Camera – Professional Security Solution
Camera Specifications
Image Sensor
- Type: 1/1.8″ Progressive Scan CMOS
- Max. Resolution: 3840 × 2160 (4K UHD)
- Min. Illumination:
- Color: 0.0005 Lux (F1.0, AGC ON)
- B&W: 0 Lux (with IR light)
- Shutter Time: 1s to 1/100,000s
- Day/Night: IR cut filter
Angle Adjustment
- Pan: 0°–360°
- Tilt: 0°–75°
- Rotate: 0°–360°
Lens
- Type: Fixed focal (2.8mm or 4mm optional)
- Field of View (FOV):
- 2.8mm:
- Horizontal: 108.8°
- Vertical: 56.4°
- Diagonal: 134.3°
- 4mm:
- Horizontal: 93.3°
- Vertical: 47.2°
- Diagonal: 114.2°
- 2.8mm:
- Mount: M16
- Aperture: F1.0
- Depth of Field:
- 2.8mm: 3.3m to ∞
- 4mm: 3.8m to ∞
DORI (Detection/Observation/Recognition/Identification)
- 2.8mm:
- D: 89m | O: 35m | R: 17m | I: 8m
- 4mm:
- D: 109m | O: 43m | R: 21m | I: 10m
Illuminator
- Type: White Light + IR
- Range: Up to 30m
- IR Wavelength: 850nm
Video
Main Stream (4K)
- 50Hz: 25fps (3840×2160, 1920×1080, etc.)
- 60Hz: 30fps (3840×2160, 1920×1080, etc.)
Sub-Stream
- 50Hz: 25fps (1280×720, 640×480)
- 60Hz: 30fps (1280×720, 640×480)
Third Stream (Limited support)
- 10fps (1920×1080, 1280×720)
Compression
- Main: H.265/H.264/H.264+/H.265+
- Sub: H.265/H.264/MJPEG
- Bit Rate: 32Kbps–16Mbps
Advanced Features
- WDR: 130dB
- ROI: 1 fixed region
- Privacy Mask: 4 programmable zones
Audio
- Type: Mono
- Compression: G.711, AAC, MP3, etc.
- Noise Filtering: Yes
Network & Storage
- Protocols: TCP/IP, HTTP, RTSP, ONVIF, etc.
- Max. Users: 32 (3 levels: Admin/Operator/User)
- Storage: MicroSD (512GB), NAS (NFS/SMB)
Power & Dimensions
- Input: 12VDC or PoE (802.3at, 17W max)
- Material: Metal housing
- Size: Ø138.3 × 115.4mm
- Weight: 820g (1.8 lb)
Environmental
- Operating Temp.: -30°C to 60°C (-22°F to 140°F)
- Protection: IP67, NEMA 4X
Certifications
- EMC: CE, RCM, KC
- Safety: UL, IEC 62368-1
- RoHS: Compliant
Key Features
✔ 4K Ultra HD
✔ Smart IR + White Light (30m range)
✔ Deep Learning (Face/Perimeter Detection)
✔ Wide Dynamic Range (130dB)
✔ Weatherproof (IP67)
DS-2CD2387G3-LIS2UY/SL
8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- Provide real-time security via built-in two-way audio
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67)
- Audio and alarm interface available
- Active strobe light and audio alarm to warn intruders off

-

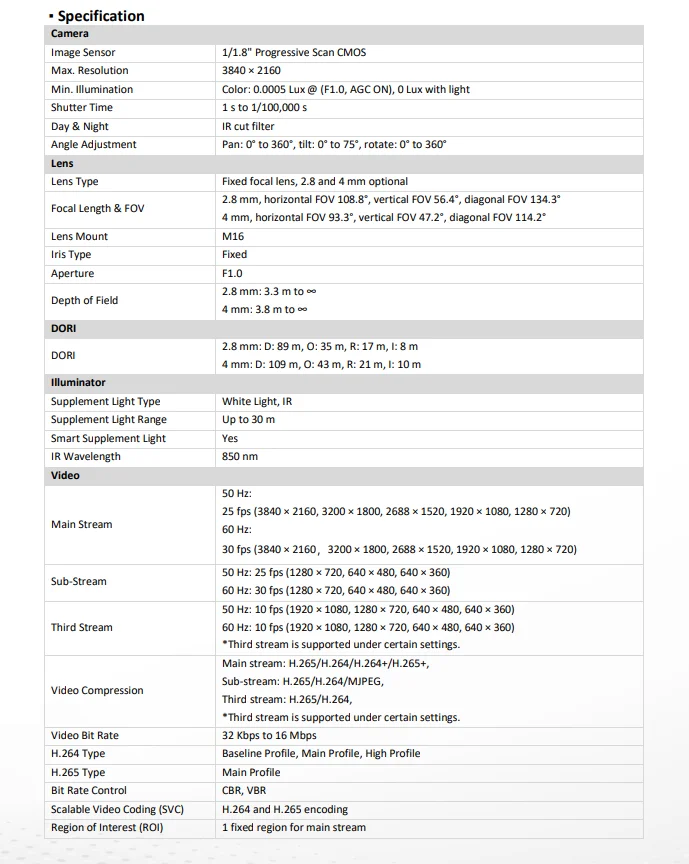

- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
-
Depth Of Field
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞
- DORI
-
DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
- Illuminator
- Supplement Light TypeWhite Light,IR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3840 × 2160,3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)1 fixed region for main stream

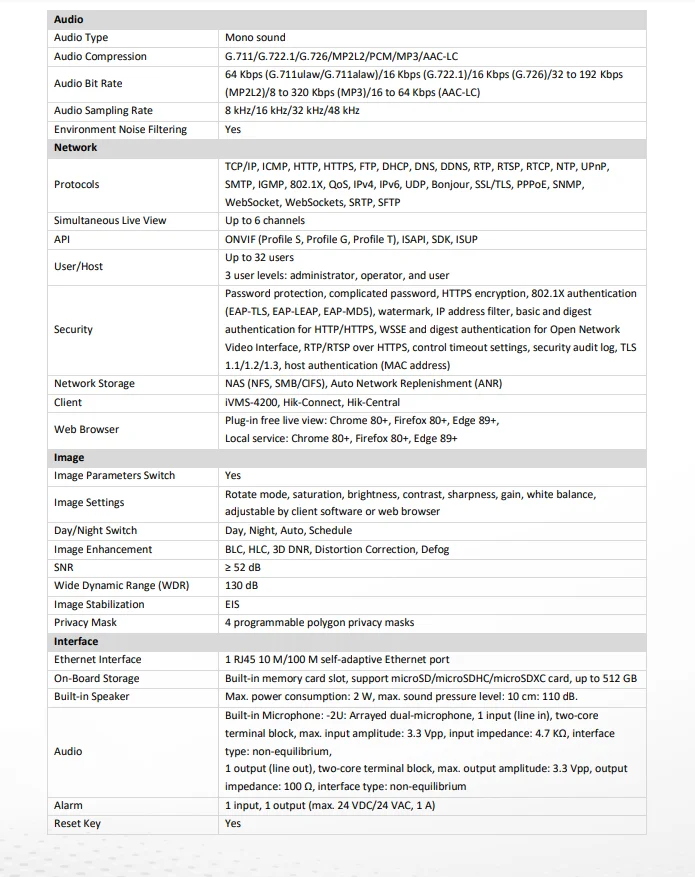

- Audio
- Audio Type-2U: Mono sound
- Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-2U: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200,Hik-Connect,Hik-Central
-
Web Browser
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
Local service: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Image StabilizationEIS
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
-
Audio
Built-in Microphone:
-2U: Arrayed dual-microphone
- Reset KeyYes

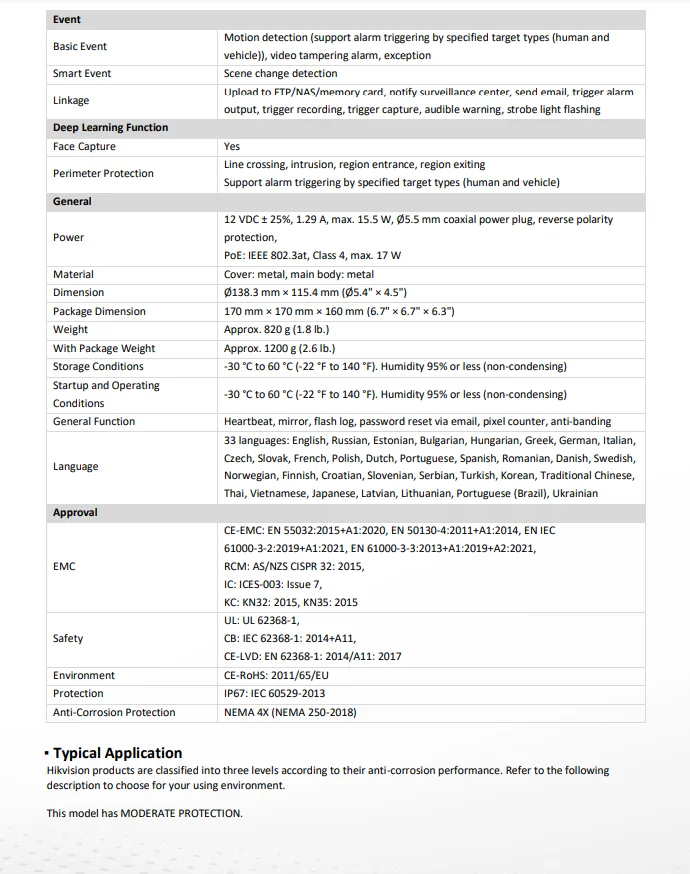

- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventScene change detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
- Deep Learning Function
- Face CaptureYes
-
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
-
Power
12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 11 W
- MaterialCover: Metal, main body: Metal

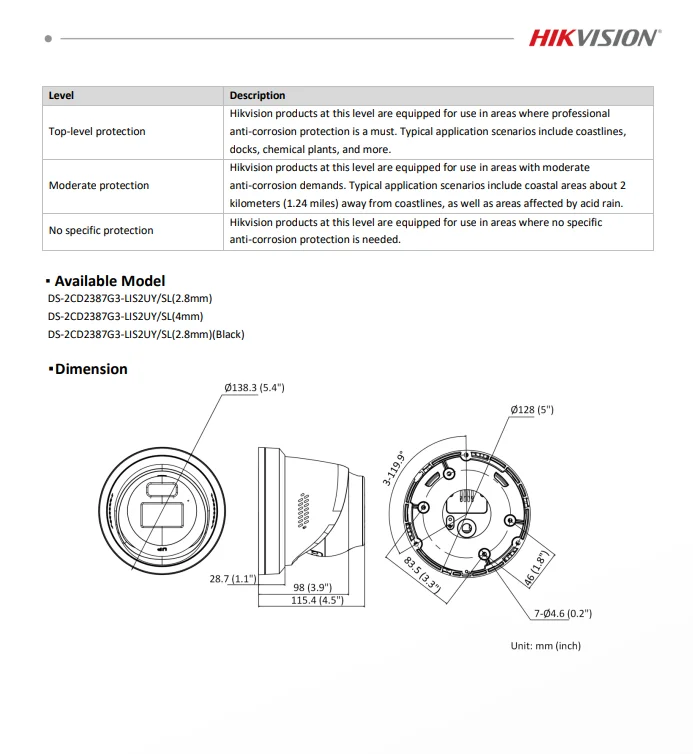

- DimensionØ138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
- Package Dimension170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
- WeightApprox. 750 g (1.7 lb.)
- With Package WeightApprox. 1140 g (2.5 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
-
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- EnvironmentCE-RoHS: 2011/65/EU
- ProtectionIP67: IEC 60529-2013
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)







1.DS-2CD2387G3-LIS2UY/SL 8 MP
2.Wiring cap*1
3.Screw driver*1
4.Screw* 1 lot
5.Location hole paper*1
